Introduction
This product is a high-tech infra-red (IR) thermometer designed to take human body temperature by measuring the energy of IR emitted from the forehead and it can transmit the temperature to a smart device with Bluetooth. The product will help you to assess you and your family members’ health conditions easily and quickly.
The Wireless No-Touch Forehead Thermometer is intended for the intermittent measurement of body temperature from the forehead on people of all ages. It can transmit the temperature to a smart device with Bluetooth and can be used by consumers in the household environment and by healthcare providers.
Overall Description

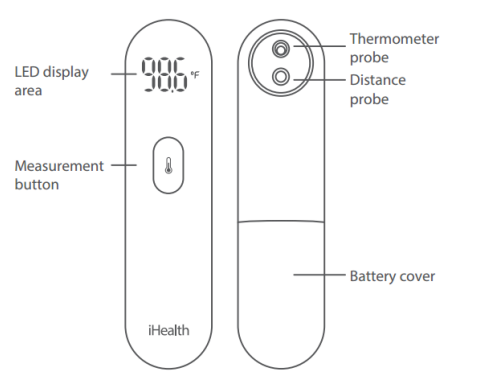

The thermometer is mainly comprised of a plastic casing, IR temperature sensor, MCU, vibration motor, LED display screen and batteries.

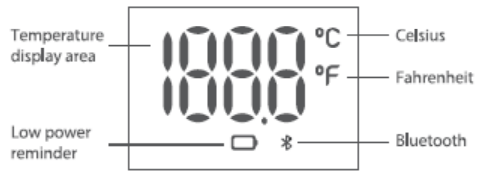

LED screen
Specifications
Product Name: Wireless No-Touch Forehead Thermometer
Product Model: PT3SBT
Device dimensions: 5.39 in x 1.34 in x 1.54 in
Screen dimensions: 1.01 in x 0.75 in
Product weight: 90 g
Product performance
1. Measurement position: Centre of the forehead surface
2. Measurement distance: ≤1.18 in(3 cm)
3. Power source: DC 3V: 2 x 1.5V size AAA batteries
4. Measurement range: 89.6℉-109.2℉(32℃-42.9℃)
5. Measurement precision: ±0.4℉(±0.2℃) within 93.2℉-107.6℉(34℃ -42℃), and±0.5℉(±0.3℃) for other temperature ranges.
6. Resolution: 0.1℉(0.1℃)
7. Clinical reproducibility: Within ±0.5℉(±0.3℃)
8. Operating conditions: Temperature: 32℉-104℉(0℃-40℃) Humidity: 15-95%RH, non-condensing Atmospheric Pressure: 70~106kPa
9. Operation mode: Adjusted mode: forehead
10. Expected service life: 5 years
11. Reference Body Site: Oral
12. Wireless communication: Bluetooth low energy
13. Software version: V1.0
