Introduction
This product is a high-tech infra-red (IR) thermometer designed to take human body temperature by measuring the energy of IR emitted from the forehead and it can transmit the temperature to a smart device with Bluetooth. The product will help you to assess you and your family members’ health conditions easily and quickly.

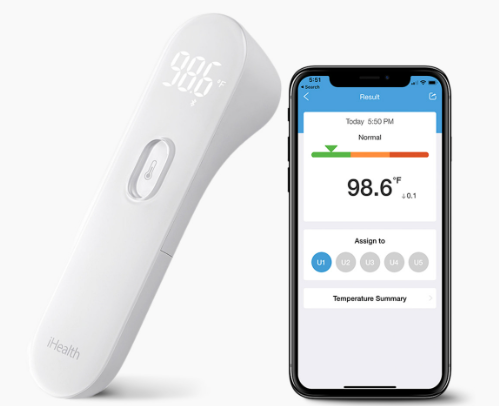

Product Name: Wireless No-Touch Forehead Thermometer
Product Model: PT3SBT
Getting started
Insert the 2 battery cells from the packaging box into the battery compartment at the back of the device. The product will start automatic inspection and a standby mode (if the device indicates low battery power, then replace the batteries to ensure ample power supply).
Installing the Device
Prior to first use, install the iHealth MyVitals App from the Apple App store or the Google Play store.
- In the iHealth MyVitals app, tap on the
in the upper right corner of the app.
- Tap Thermometers
- Tap the PT3SBT
- Press the power button on the thermometer to turn on the device and tap "Next" in the app.
- Follow the steps on the phone to complete the installation.
Measurement Process

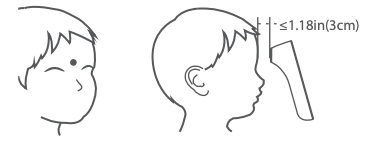

- Aim the thermometer probe at the center of the forehead and keep the probe 1.18in (3cm) away from the forehead (the optimal distance is about the width of an adult’s index nger). Do not touch the forehead with the probe.
- Gently press the measurement button
to start the measurement.
- The device will vibrate once a reading is obtained. The reading will be displayed on the screen. If the measurement is failed, the device will not vibrate the screen but display [---°F ] instead.
Unit Switching
- When the device is powered OFF, press and hold the measurement button for 8 seconds to enter unit switching mode. Under this mode, both ℃ and °F should ash at the same time.
- Under this mode, press the measurement button to switch to Fahrenheit or Celsius. The corresponding symbol of the selected unit after switching will ash.
- After selecting the unit, press and hold the measurement button for 8 seconds to leave the unit switching mode.
Product Features
One of the highlights of this product is 1-Second Testing. Compared with digital pen-like thermometer, it needs less test time , easy-to-use and does not disturb (no fuss). It’s quite convenient for those people who want to know their body temperature in a short time and quite easy to test baby temperature.
Accurate Measurement with Built-in Advanced Thermopile Sensor
iHealth Non-Contact Forehead Thermometer measures thermal radiation from the surface of the human body. Pressing the button begins data collection for 100 tests completed within 1 second and processed by an algorithm that ensures accurate temperature readings.
Higher Accuracy with Built-In Distance and Environmental Temperature Sensors with Compensation Ability
iHealth Non-Contact Forehead Thermometer senses the real-time variations in environmental temperature to reduce the impact and compensates to ensure measurement accuracy. This thermometer will not take a reading if the distance between the probe and the forehead is greater than 1.18 in (3cm) to prevent errors.
Extremely easy to use
One button, 1-second testing, only 3 steps (Aim, press and display result).
Undisturbed measurement design
To ensure undisturbed measurement, we use this 1.18 in (3cm) measurement distance no-touch design, and the thermometer vibrates silently once the reading is complete.
Clear Display
The LED backlight display, screen size: 1.01 in x 0.75 in large display, easy to read in day and night. The light is not bright and will not disturb the sleeping baby. Auto power-off after 8 seconds without operation.
