FAQ - Technical Specifications and Symbols iHealth Neo (BP5S)

Updated

Screenshot 2025-02-26 at 4.10.07 PM.png



INTRODUCTION

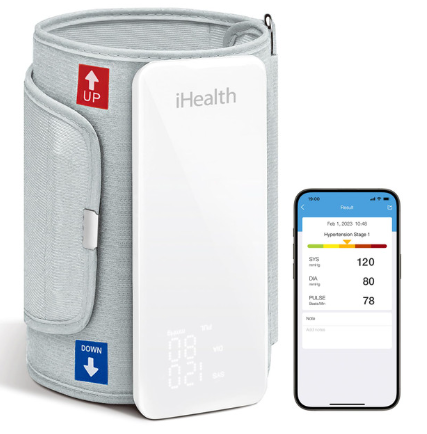

Thank you for selecting the iHealth Neo Wireless Blood Pressure Monitor. The iHealth Neo
Wireless Blood Pressure Monitor is a fully automatic arm cuff blood pressure monitor that
uses the oscillometric principle to measure your blood pressure and pulse rate. The monitor
works with your mobile devices to track and share vital blood pressure data.

PACKAGE CONTENTS

  • 1 iHealth Neo Wireless Blood Pressure Monitor
  • 1 User Guide
  • 1 Quick Start Guide
  • 1 Charging Cable
  • 1 Travel Bag

INTENDED USE

The iHealth Neo Wireless Blood Pressure Monitor (Electronic Sphygmomanometer} is intended for use in a professional setting or at home and is a non-invasive blood pressure measurement system. It is designed to measure the systolic and diastolic blood pressures and pulse rate of an adult individual by using a technique in which an inflatable cuff is wrapped around the arm. The measurement range of the standard cuff circumference is 22cm-42cm (8.6" to 16.5").



CONTRAINDICATION

Screenshot 2025-02-19 at 3.57.40 PM.png It is not recommended for people with serious arrhythmia to use this Wireless Blood Pressure
Monitor.

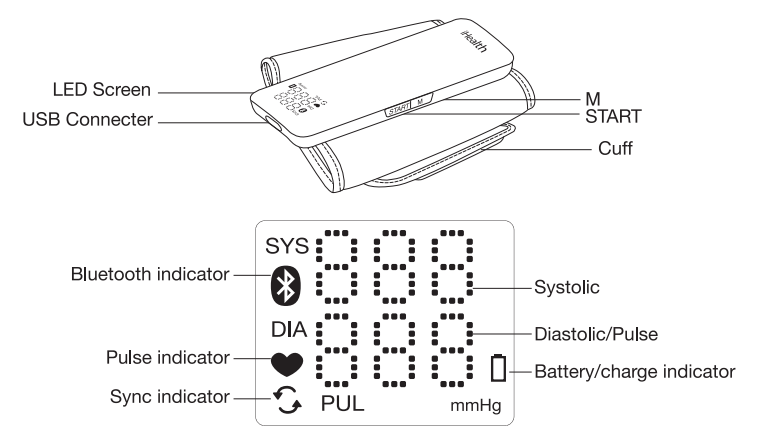

PARTS AND DISPLAY INDICATORS

Screenshot 2025-02-26 at 4.20.16 PM.png



Specifications

  1. Product name: iHealth Neo Wireless Blood Pressure Monitor
  2. Model: SPSS
  3. Classification: Internally powered; Type BF applied part; IP22, No AP or APG; Continuous operation
  4. Machine size: approx. 141.5 mm x 60.5 mm x 19 mm (5.57" x 2.38° x 0.75")
  5. Cuff circumference: BP5S-Std: 22cm-42cm (8.66" to 16.54 "); SPSS-XL: 42cm-48cm ( 16.5" to 18.9")
  6. Weight: approx. 240g (8.47 oz) (including cuff)
  7. Measuring method: Oscillometric method, automatic inflation and measurement
  8. Memory volume: 200 times with time and date stamp
  9. Power: DC:5.0V=1.0A, Battery: 1*3.7V=Li-ion 950mAh
  10. Charging cable is a standard USB Micro - Screenshot 2025-03-10 at 3.39.29 PM.png
  11. Measurement range: Cuff pressure: 0-300 mm Hg Systolic: 60-260 mm Hg Diastolic: 40-199 mmHg Pulse rate: 40-180 beats/minute
  12. Accuracy: Pressure: ±3 mmHg Pulse rate: Less than 60: ±3bpm More than 60 (incl.): ±5%
  13. Wireless communication: Bluetooth V4.1 Class 2 Frequency Band: 2.400-2.4835 GHz
  14. Environmental temperature for operation: 5"C-40"C (41 "F -104 "F)
  15. Environmental humidity for operation: <85%RH
  16. Environmental temperature for storage and transport: -20°C-55°C (-4 °F-131 °F)
  17. Environmental humidity for storage and transport: s90%RH
  18. Environmental pressure: 80kPa-105kPa
  19. Battery life: more than 130 measurements on a full charge
  20. The blood pressure measurement system includes accessories: pump, valve, cuff, LED screen and sensor.
    Note: These specifications are subject to change without notice.
