FAQ - Specifications for the Pulse Blood Pressure Monitor (KD‑723SE)

Updated

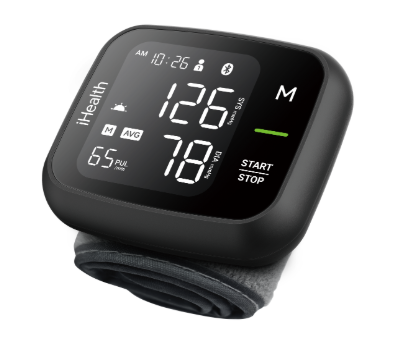

Pulse KD-723SE.png

PRODUCT DESCRIPTION

The iHealth Pulse Wrist Blood Pressure Monitor can measure both blood pressure and pulse rate automatically and non-invasively with the oscillometric method and integrated silicon pressure sensor. The LCD display will show blood pressure and pulse rate. This monitor can be used by multiple users. For each user, the most recent 199 measurements can be stored on the device with date and time stamps.



INTENDED USE


iHealth Pulse Wrist Blood Pressure Monitor is for use by medical professionals or by individuals (patients) at home. It is a non-invasive blood pressure measurement system intended to measure the diastolic blood pressure, systolic blood pressure and pulse rate of an adult individual by using a non-invasive technique in which an inflatable cuff is wrapped around the wrist. The cuff circumference is limited to 5.5-7.7 in (14.0-19.5 cm).



CONTRAINDICATION

warning symbol.pngThis Blood pressure monitor (Electronic Sphygmomanometer) is not suitable for people with severe arrhythmia to use.

Specifications

  1. Product name: iHealth Pulse Wrist Blood Pressure Monitor

  2. Model: KD-723SE

  3. Classification: Internally powered equipment, Type BF applied part, IP22, No AP or APG, continuous operation, not intended for use in an OXYGEN-RICH ENVIRONMENT.

  4. Device dimensions: Approx. 2.8 in × 2.4 in × 0.9 in (70 mm × 61 mm × 22 mm), excluding the cuff

  5. Measurable wrist circumference: 5.5 to 7.7 in (14.0 to 19.5 cm)

  6. Weight: Approx. 3.28 oz (93 g), excluding batteries

  7. Measurement method: Oscillometric method, automatic inflation and measurement

  8. Memory: 199 readings per user with date and time stamps

  9. Power supply: 3 V (2 × 1.5 V LR03/AAA batteries)

  10. Measurement ranges:
    Cuff pressure: 0 to 300 mmHg
    Systolic pressure: 60 to 260 mmHg
    Diastolic pressure: 40 to 199 mmHg
    Pulse rate: 40 to 180 beats/minute

  11. Accuracy:
    Pressure: ±3 mmHg
    Pulse rate: ±5%
    Display resolution: 1 mmHg

  12. Operating conditions:
    Temperature: 50oF to 104oF (10oC to 40oC)
    Relative humidity: ≤ 85% RH
    Atmospheric pressure: 80 kPa to 105 kPa

  13. Storage/transport conditions:
    Temperature: -4oF to 122oF (-20oC to 50oC)
    Relative humidity: ≤ 85% RH
    Atmospheric pressure: 80 kPa to 105 kPa

  14. Battery life: Approx. 200 measurements

  15. Wireless communication:
    Bluetooth Low Energy 5.3, works with iOS and Android
    Modulation type: GFSK
    Frequency band: 2.400 GHz to 2.4835 GHz
    Effective radiated power: < 20 dBm

  16. The blood pressure measurement system includes the following accessories: pump, valve, LCD, cuff, and sensor.
