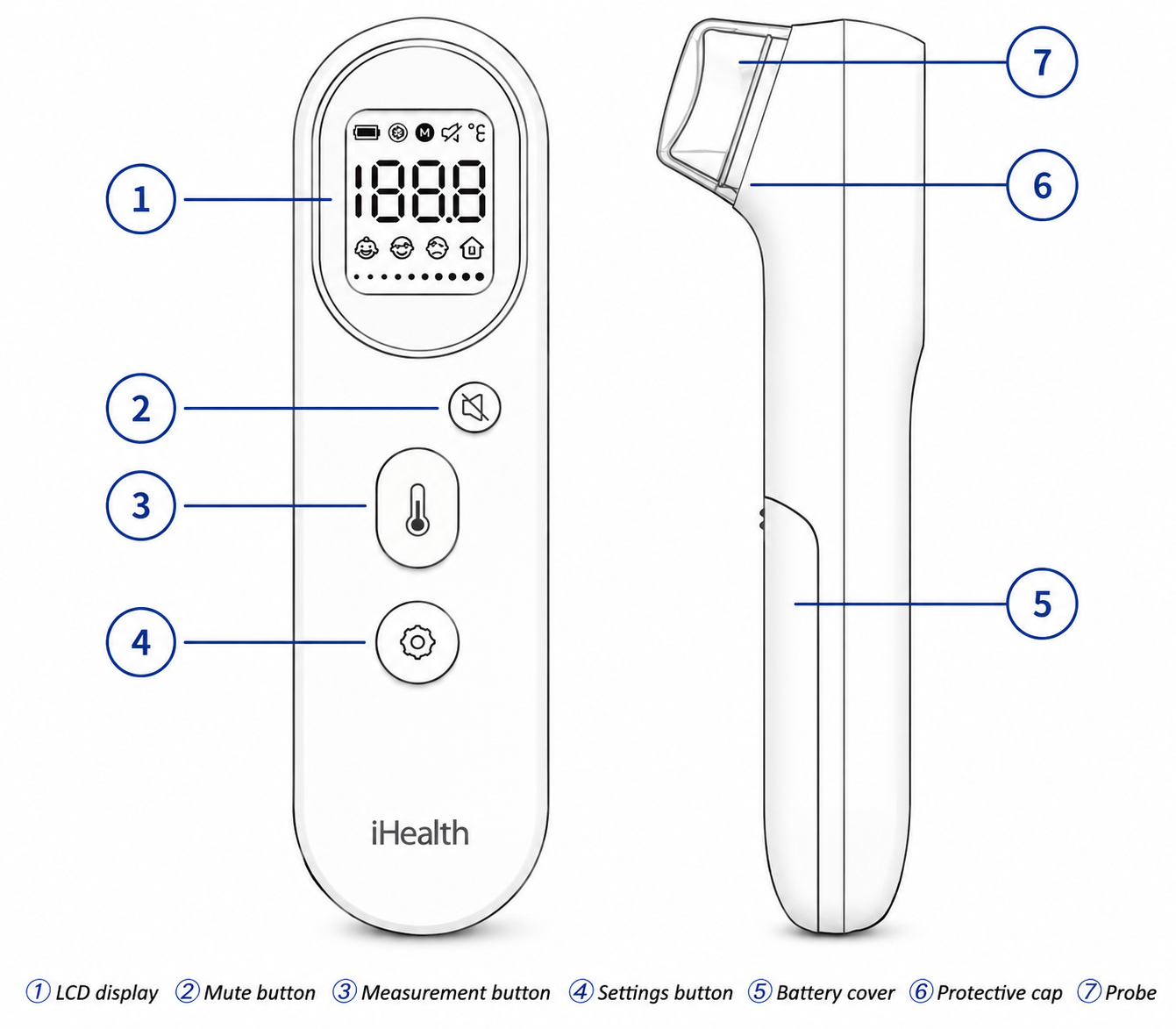

Overall Description

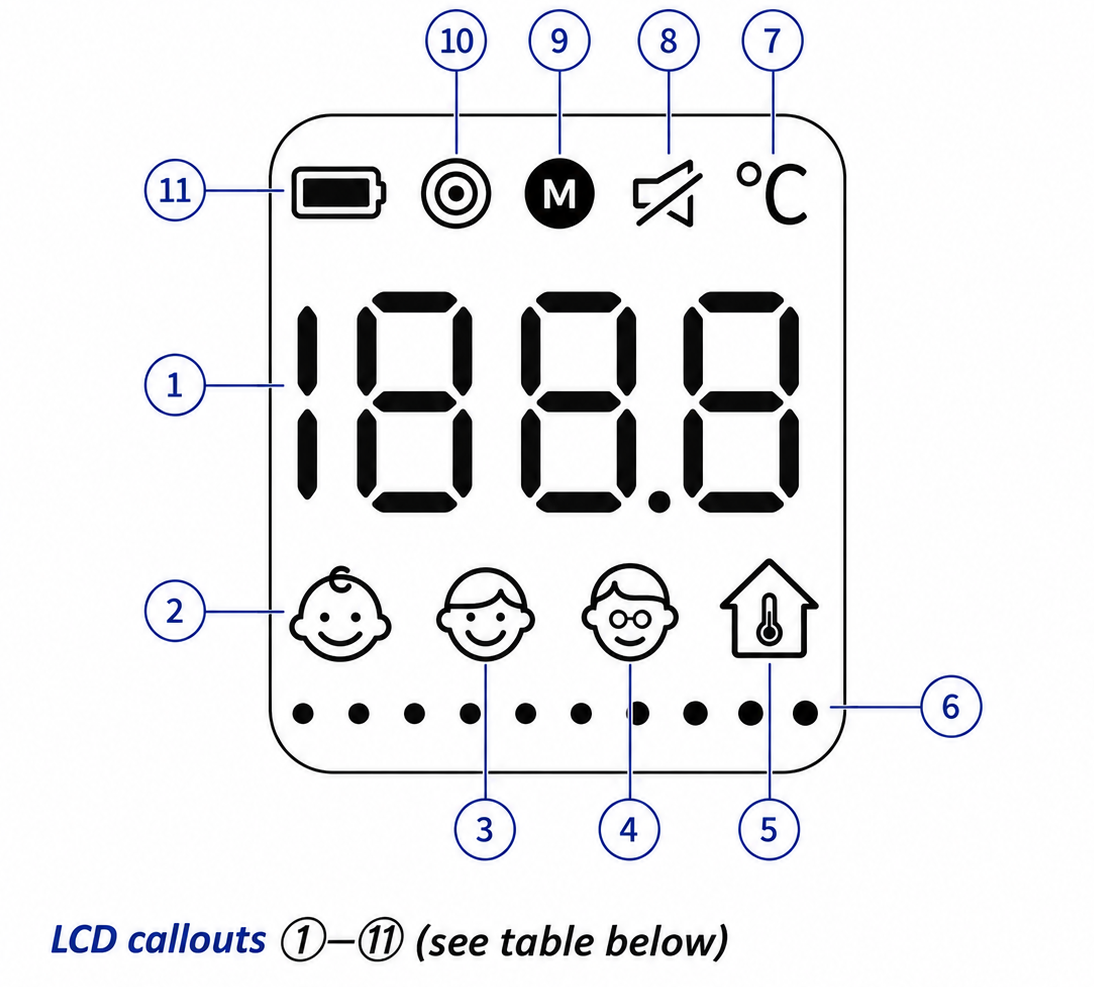

LCD Screen
| No. | Symbol | Meaning |
| ① | Temperature display area | Shows the measured temperature |
| ② | Infant temperature mode symbol | Infant mode is active |
| ③ | Child temperature mode symbol | Child mode is active |
| ④ | Adult temperature mode symbol | Adult mode is active |
| ⑤ | Object temperature mode symbol | Object mode is active |
| ⑥ | Progress bar symbol | Measurement in progress |
| ⑦ | Temperature unit symbol | °F / °C currently selected |
| ⑧ | Mute symbol | Sound is turned off |
| ⑨ | Memory symbol | Viewing a stored reading |
| ⑩ | Dynamic measurement mode symbol | Continuous (press & hold) measurement |
| ⑪ | Battery symbol | Battery level / low-battery alert |
Specifications
- Measurement position: Centre of the forehead surface
- Measurement distance: ≤ 1.18 in (3 cm)
- Power source: DC 2 × 1.5V, SIZE AAA batteries
- Measurement range: 89.6°F – 109.2°F (32°C – 42.9°C)
- Measurement precision: ±0.4°F / 0.2°C within 95°F – 107.6°F (35°C – 42°C), and ±0.5°F / 0.3°C for other temperature ranges
- Resolution: 0.1°F / 0.1°C
- Clinical reproducibility: Within ±0.5°F / 0.3°C
- Operating conditions: Temperature 50°F – 104°F (10°C – 40°C); Humidity 15–95% RH, non-condensing; Atmospheric pressure 70 kPa – 106 kPa
- Transportation and storage conditions: Temperature -4°F – 131°F (-20°C – 55°C); Humidity 15–95% RH, non-condensing; Atmospheric pressure 70 kPa – 106 kPa
- Operation mode: Adjusted mode
- Expected service life: 5 years
- Reference Body Site: Oral
- Software version: V1.0
Dimensions and weight
Device dimensions: 5.15 in × 1.37 in × 1.49 in (131 mm × 35 mm × 38 mm)
Screen dimensions: 0.98 in × 0.7 in (25 mm × 18 mm)
Product weight: 78.5 g (including batteries)
