FAQ - Getting started with the Wireless Pulse Oximeter (PO1)

Product Description

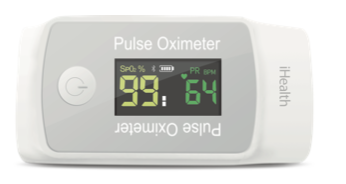

iHealth Wireless Pulse Oximeter (PO1) is a compact and ultra simple design monitoring device,
providing reliable, instant and accurate oxygen saturation and pulse rate measurements.
The monitor is not a medical device and should only be used by healthy individuals who are
performing non-medical sports or recreational activities.

Product Features

• Easy to use one-button control.
• Easily portable devices.
• Energy-saving, 2 AAA batteries for 15-hour of usage.
• Low batteries indicator on the screen.
• The machine will automatically power off after 10 seconds when there’s no signal generated.

Included in the box

1 - Wireless Pulse Oximeter

1 - Operation manual

2 - 1.5V AAA alkaline batteries

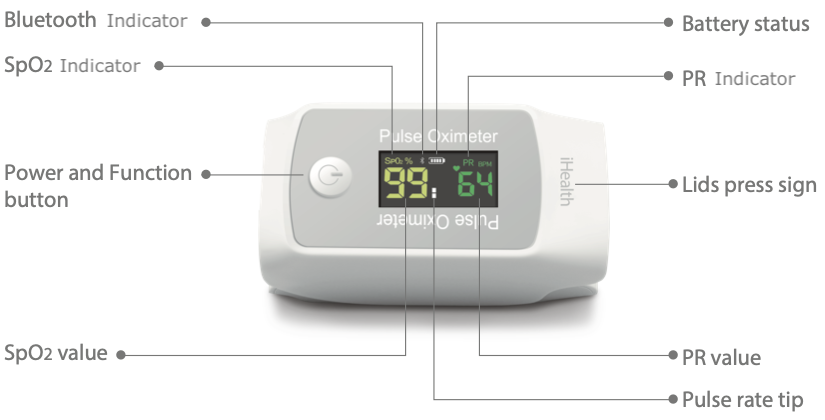

Display Introduction

(Figure 1)

Measurement Steps

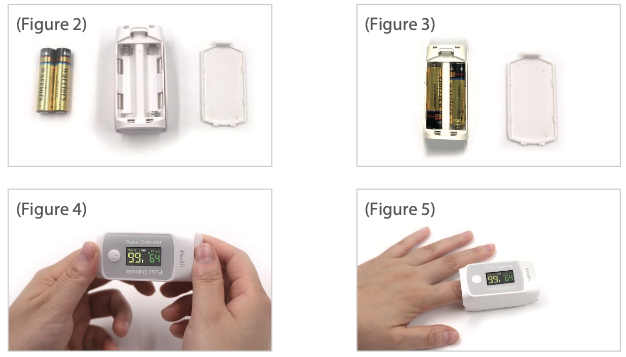

1. Pull open the battery cover as shown in Figure 2.
2. Install batteries into the slots per the “+” and “-” symbols as shown in Figure 3. Replace the battery cover over the battery compartment and push it forward to lock in place.
3. Place the finger into the rubber cushions of the clip, make sure the finger is in the correct position as shown in Figure 4.
4. Press the on-off button to turn on the device. Use the index finger, middle finger or ring finger when doing a test. Don’t shake the finger and keep the user at ease during the measurement. The readings will be displayed on the TFT screen a moment later as shown in Figure 5.

Note:

• Don’ t shake the finger and keep the user calm during the process.
• Pigment, or deep color (for example: nail polish, artificial nails, dye or pigmented cream) may cause inaccurate measurements.

Function Description

SpO2 measurement:

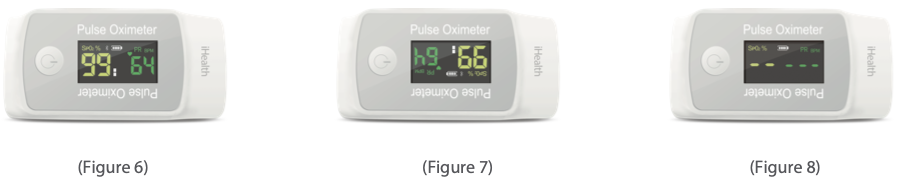

Press the on-off button for seconds to turn on the device, the device will be in the measurement mode automatically. (As shown in Figure 6)

Screen display rotation function:

When the data displays on the screen, press the on-off button one time, the display direction will be rotated. (As shown in Figure 7)

Auto power off:

When no signal is received, “- - -” will be displayed on the screen.(As shown in Figure 8), The product will automatically be powered off after 10 seconds.

Bluetooth Communication Function:

iHealth PO1 Wireless Pulse Oximeter is designed with the Bluetooth communication function. Data will be sent and synced to the iHealth MyVitals App. The iHealth MyVitals App works with both iOS and Android devices and can be found at the Apple Apps Store (iOS) and the Google Play Store (Android)

NOTE:

When Bluetooth function is not connected successfully, Bluetooth indicator will flicker. When the Bluetooth function is connected successfully, the Bluetooth indicator will continue to be lit.
