Introduction

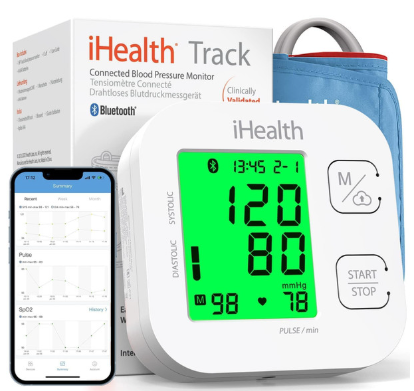

Thank you for selecting the iHealth Track Blood Pressure Monitor. The iHealth Track Blood Pressure Monitor is a fully automatic arm-cuff blood pressure monitor that uses the oscillometric principle to measure your blood pressure and pulse rate. The monitor works with your mobile devices to track and share vital blood pressure data.
BOX CONTENTS
- Track Blood Pressure Monitor
- Cuff
- Instruction Manual
- 4 AAA Batteries
INTENDED USE
iHealth Track Blood Pressure Monitor is for medical professionals or individuals (patients) at home. It is a non-invasive blood pressure measurement system intended to measure the diastolic blood pressure, systolic blood pressure, and pulse rate of an adult individual using a non-invasive technique in which an inflatable cuff is wrapped around the arm. The cuff circumference is limited to B.6''-18.9" (22-48cm).
CONTRAINDICATION
This Blood pressure monitor (Electronic Sphygmomanometer) is unsuitable for people with severe arrhythmia.

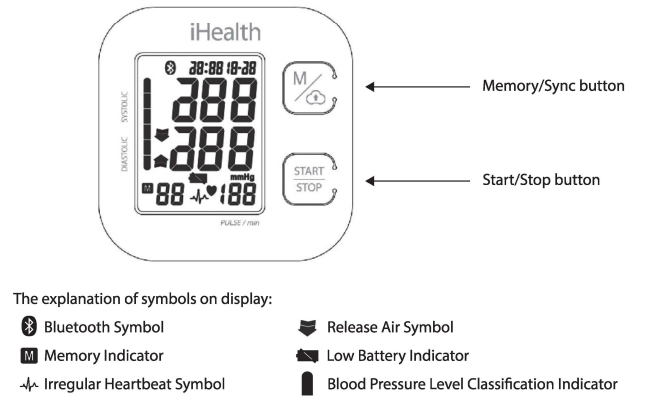

CONTENTS AND DISPLAY INDICATORS
IMPORTANT INFORMATION ABOUT BLOOD PRESSURE MEASUREMENT
The Track Blood Pressure Monitor is designed for adult use. Talk to your pediatrician before using it on a child.
- NORMAL BLOOD PRESSURE FLUCTUATION
Blood pressure is affected by various factors, including excitement, stress, body position, and physical activities such as eating, drinking, and smoking. As a result, it is unusual to obtain identical blood pressure readings multiple times.
Blood pressure constantly fluctuates throughout the day and night. Typically, blood pressure rises during the day and peaks while most people are awake and active. It then drops in the evening, reaching its lowest while most people sleep.
Considering the above information, measuring your blood pressure at approximately the same time every day is recommended. - BLOOD PRESSURE CLASSIFICATION FOR ADULTS
| Blood Pressure Classification | Systolic mmHg | Diastolic mmHg | Backlight Indicator |
| Optimal | <120 | < 80 | Green |
| Normal |
120-129 |
or 80-84 | Green |
| High-normal | 130-139 | or 85-89 | Yellow |
| Grade 1 Hypertension | 140-159 | or 90-99 | Flashing Yellow |
| Grade 2 Hypertension | 160-179 | or 100-109 | Red |
| Grade 3 Hypertension | ≥180 | or ≥110 | Flashing red |
WHO Definitions and Classification of Blood Pressure Levels
SPECIFICATIONS
Product name: iHealth Track Connected Blood Pressure Monitor
Model: KN-SS0BT
Classification: Internally powered, Type BF applied part; IP21, No AP or APG; Continuous operation
Device Dimensions: 38.6"x 38.6"x 18.1 "(9.8 x 9.8 x 4.6cm) (not including the cuff)
Cuff circumference: Standard cuff: 8.6'' to 16.5" (22cm to 42cm), XL cuff: 16.5" to 18.9"(42cm to 48cm).
Weight: 348g (batteries and cuff included)
Measuring method: Oscillometric method, automatic inflation, and measurement
Memory storage: 99 measurements
Power source: 4x1 .SV = SIZE AAA batteries
Measurement range:
- Cuff pressure: 0-300mmHg
- Systolic: 60-260mmHg
- Diastolic: 40- 199mmHg
- Pulse rate: 40-180 beats/minute
Wireless communication: Bluetooth 5.2
Frequency Band: 2.400-2.4835 GHz
Precision of the displayed values: 1 mm Hg
Measuring accuracy: Pressure: ±3mmHg, Pulse rate: ±5%
Operation conditions: S0°F-l 04°F(10°C-40°C), :'>85% RH, 80-1 0SkPa
Storage/Transport condition: -4°F-122°F(-20°C-·S0°C), :'>85% RH, 80-105kPa
Battery life: Approximately 300 measurements
This blood pressure measurement system includes accessories: A pump, valve, cuff, and sensor.
Note: These specifications are subject to change without notice.
