FAQ - Ease Specification (BP3L)

INTENDED USE

The iHealth Wireless Blood Pressure Monitor (Electronic Sphygmomanometer) is intended for use in a
professional setting or at home and is a non-invasive blood pressure measurement system. It is designed to measure the systolic and diastolic blood pressures and pulse rate of an adult individual by using a technique in which an inflatable cuff is wrapped around the upper arm. The measurement range of the standard cuff circumference is 8-21/32” to 14-3/16” (22cm-36cm).
Note: Consult your physician for proper interpretation of blood pressure results.

CONTRAINDICATION

It is not recommended for people with serious arrhythmia to use this wireless blood pressure monitor.

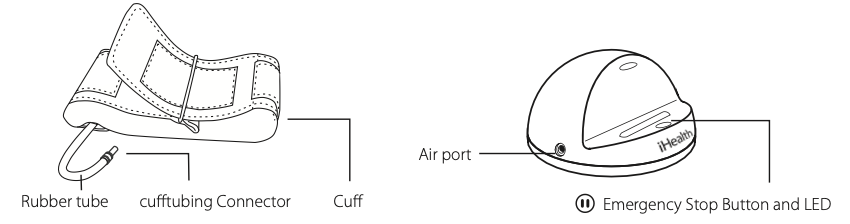

PARTS AND DISPLAY INDICATORS

Specifications

1. Product name: Wireless Blood Pressure Monitor
2. Model: BP3L
3. Classification: Internally powered; Type BF applied part; IPX0, No AP or APG; Continuous operation
4. Machine size: approx. 4.53”×4.53”×2.62” (115mm×115mm×66.5mm)
5. Cuff circumference: 8-21/32” to 14-3/16” (22cm - 36cm)
6. Weight: approx. 8.47oz (240g) (exclusive cuff );
7. Power: DC: 5.0V 1A, Battery: 1×3.7V Li-ion 2200mAh
8. Measurement range:
   Cuff pressure: 0 - 300 mmHg
   Systolic: 60 - 260 mmHg
   Diastolic: 40 - 199 mmHg
   Pulse rate: 40 - 180 beats/minute
9.  Accuracy:
   Pressure: ±3 mmHg
   Pulse rate: ±5%
10. Wireless communication:
    Bluetooth Smart
    Frequency Band: 2.402 - 2.480 GHz
11. Environmental temperature for operation: 10°C - 40°C (50°F - 104°F)
12. Environmental humidity for operation: ≤85% RH
13. Environmental temperature for storage and transport:-20°C - 55°C (-4°F - 131°F)
14. Environmental humidity for storage and transport: ≤85% RH
15. Environmental pressure: 80kPa - 105kPa
16. Battery life: more than 500 measurements on a full charge, the battery can maintain the performance characteristics for a minimum of 300 charge cycles
17. The blood pressure measurement system includes accessories, pump, valve, cuff, and sensor.

Note: These specifications are subject to change without notice.

BATTERY HANDLING AND USAGE

• When the monitor is connected to a mobile device, the battery percentage will be displayed in the mobile device app. If the battery charge is less than 25%, please charge the battery. The monitor will not work until the battery has enough power.
• When the monitor needs charging, please connect the monitor to a power source. The monitor will function normally work while charging.
• You should charge the battery when the battery is less than 25% charged. Overcharging the battery may reduce its lifetime.
• When in charging mode, the LED on the device will be displayed with different colors indicating the charging status. See the table below for details.
