Box Contents
- 1 x Blood Pressure Monitor
- 1 x Cuff (8.7" - 16.5")
- 1 x Instruction Manual
- 1 x Storage Bag
- 4 x AA Batteries
Intended use
Fully Automatic Electronic Blood Pressure Monitor is for use by medical professionals or at home and is a non-invasive blood pressure measurement system intended to measure the diastolic and systolic blood pressures and pulse rate of an adult individual by using a noninvasive technique in which an inflatable cuff is wrapped around the upper arm. The cuff circumference is limited to 17cm-48cm (approx. 6 11/16"-18 29/32")
CONTRAINDICATION
▲ This wireless blood pressure monitor (electronic sphygmomanometer) is not suitable for people with severe arrhythmia.
PRODUCT DESCRIPTION
Based on oscillometric methodology and a silicon-integrated pressure sensor, blood pressure and pulse rate can be measured automatically and non-invasively. Users can operate the device themselves. The liquid crystal display (LCD) shows blood pressure and pulse rate. This wireless blood pressure monitoring device can store up to 120 readings each for two different users, along with the date and time of each measurement.
This wireless blood pressure monitor has been designed in accordance with the requirements of ISO 81060-2-2018.

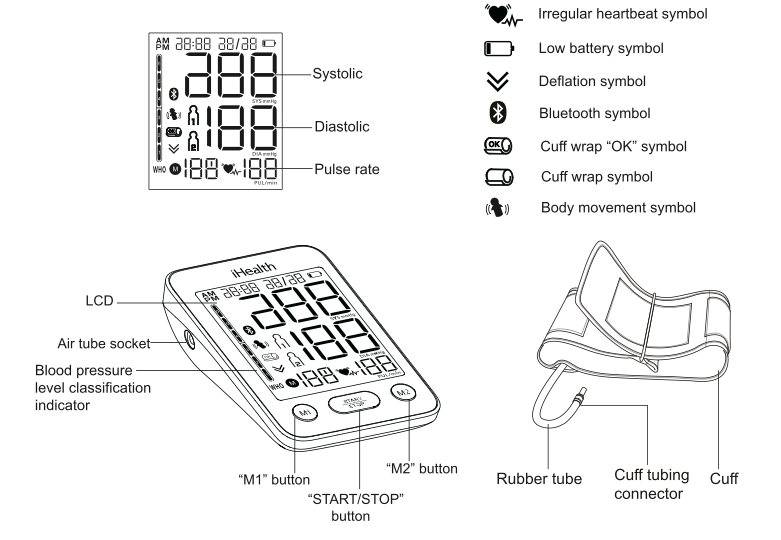

Display Indicators
Specifications
Product name: iHealth Accu Luminate Wireless Blood Pressure Monitor
Model: KD-5811BT
Classification: Internally powered, Class II, Type BF applied part, IP21, No AP or APG, continuous operation, not intended for use in an OXYGEN-RICH ENVIRONMENT.
Monitor size: Approx. 5.5" x 3.7" x 1.7" (139.4 mm x 93.8 mm x 43.4 mm)
Cuff circumference: 8.7"-16.5" (22 cm-42 cm).
Weight: Approx. 8.43 oz. (239 g) (excluding batteries and cuff)
Measuring method: Oscillometric method
Memory volume: Two users, 120 measurements each
Power source: Medical AC adapter: 5V 1A, batteries: 4 x 1.5V-SIZE AA
Measurement ranges:
- Cuff pressure: 0 to 300 mmHg
- Systolic: 60 to 260 mmHg
- Diastolic: 40 to 199 mmHg
- Pulse rate: 40 to 180 beats/minute
Accuracy:
- Pressure: ±3 mmHg
- Pulse rate: Less than 60: ±3 bpm
- More than 60 (incl.): ±5%
- The precision of the displayed values: 1 mmHg
Environmental temperature for operation: 41°F to 104 °F (5°C to 40°C)
Environmental humidity for operation: ≤85% RH
Environmental temperature for storage and transport: -4 °F to 131 °F(-20 °C to 55 °C)
Environmental humidity for storage and transport: ≤90% RH
Environmental pressure: 80 kPa to 105 kPa
Battery life: Approx. 270 measurements
Wireless communication:
- Modulation types: GFSK
- Frequency Band: 2.400 GHz to 2.4835 GHz
- Effective radiated power: <0 dBm
Product life:
- Monitor: 3 years
- Cuff: 3 years
