Instruction for Use

(1) Measurement Procedures

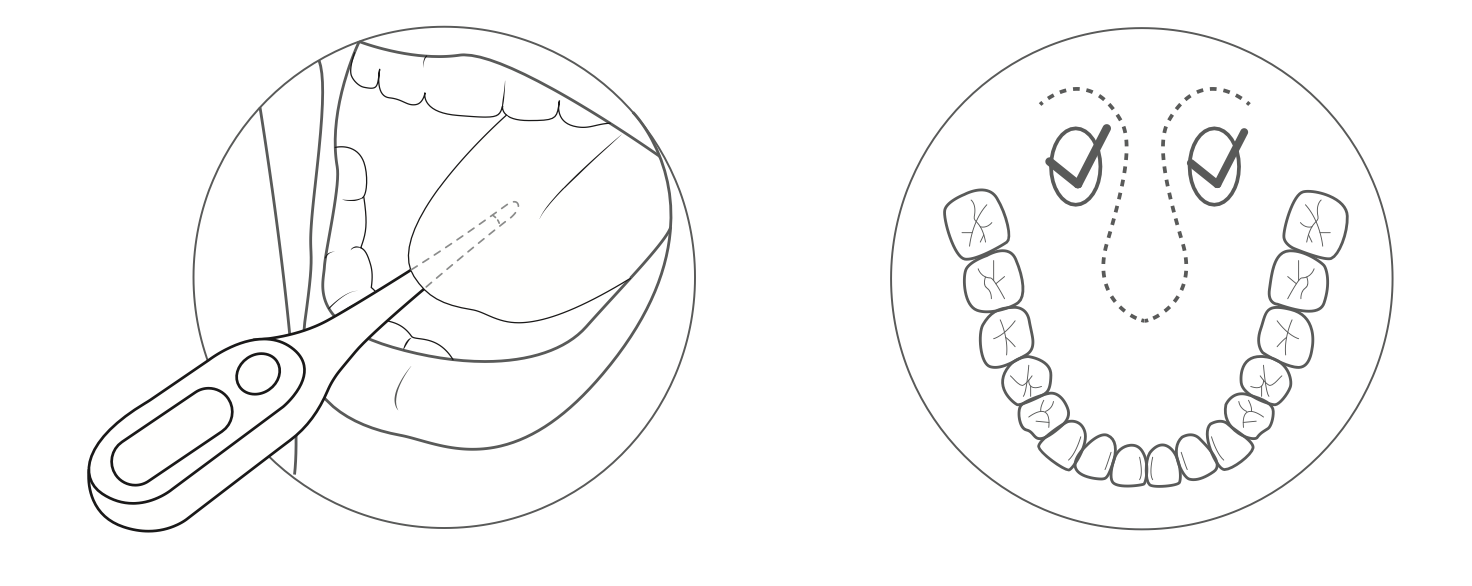

1. Place the probe tip well under the tongue. Place the sensor tip in areas marked with marked with “✓”. The mouth should remain closed during the measurement to ensure an accurate
   reading. Be careful not to bite the thermometer.
2. Hold the thermometer during the measurement to prevent moving.

(2) Predict Mode

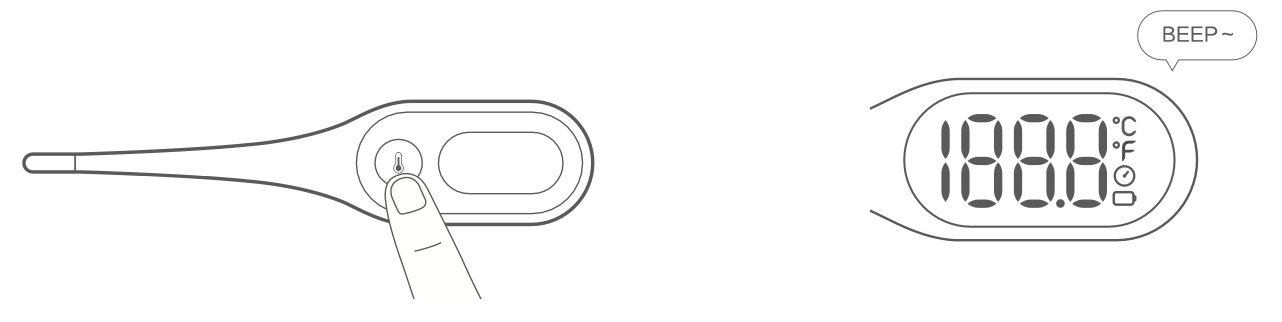

1. The thermometer provides Predict Mode for oral use. Simply press the button once to activate the thermometer, beep will sound when activated.

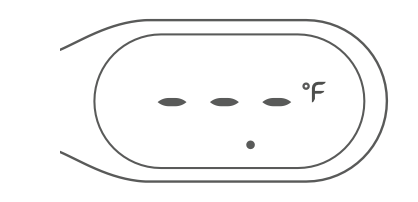

2. When “℉” sign is flashing on the screen, place the probe tip well under the tongue and hold well.

3. A gentle beep will sound in 30 seconds when measurement is completed and the results will display on the screen.

(3) Monitor Mode

The thermometer could be used orally, rectally or axillary.

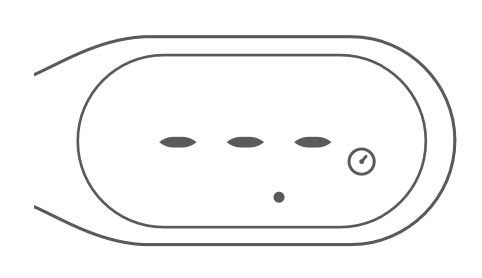

To enter Monitor Mode, make sure the thermometer is in the OFF mode, press and hold the button for 5 seconds, beep will sound when activated.

Then follow the measurement procedures as usual, the results
will display in 3 minutes.

(4) Recall Function

Make sure the thermometer is in the OFF mode. Hold the button until the last measurement result displays on the screen (approximately 10 seconds).

(5) When measurement is completed

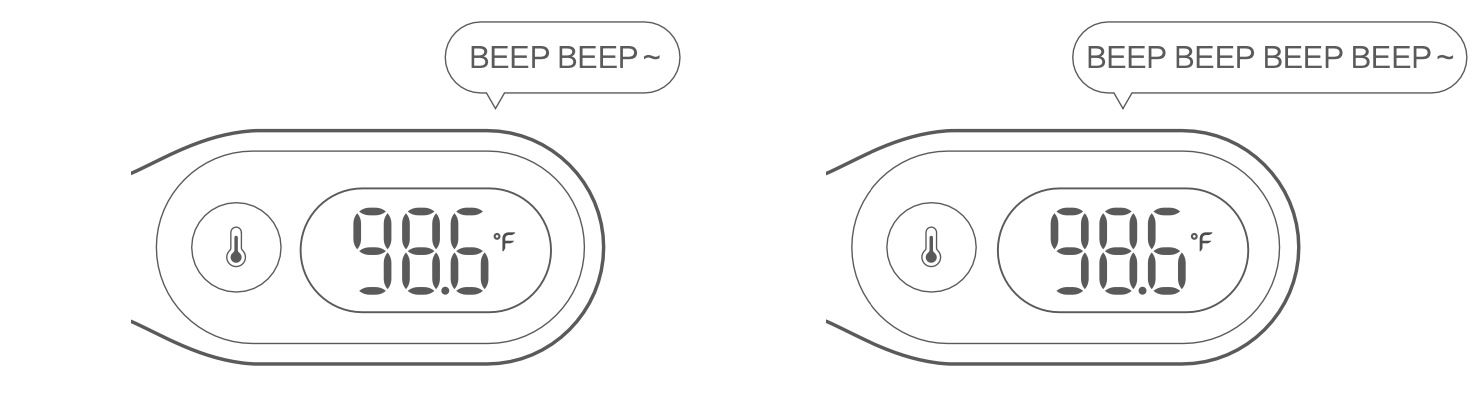

1. When the measurement is completed, 2 beeps will sound for 3 times when the results is less than 99.5℉(37.5℃) , otherwise 4 beeps will sound for 3 times.

2. When the measurement is completed, “℉” sign will stop flashing with backlighting.
3. The thermometer will power off automatically 30 seconds after the last measurement is completed.
4. If no more measurement is required, press and hold the on-off button to power off manually to save batteries power.

Unit Switching

1. Make sure the thermometer is in the OFF mode.
2. Hold the button until ONLY ℃ and ℉ symbols flash on the right corner of the screen (approximately 8 seconds). Then release the button immediately.
3. Briefly press the button to select the measurement unit you prefer.
4. Once the selected unit symbol flashes on the screen, hold the button until the unit symbol stops flashing (approximately 8 seconds), then release the button, the thermometer will power off automatically.

Reminder: If you do not press and hold the On/Off button for 8 seconds to confirm the unit selected before the screen switches off, the system will consider the switch as a failure and retain the original unit for temperature measurements.
